Discover how Helios N-1 unveils
the hidden depth of your music

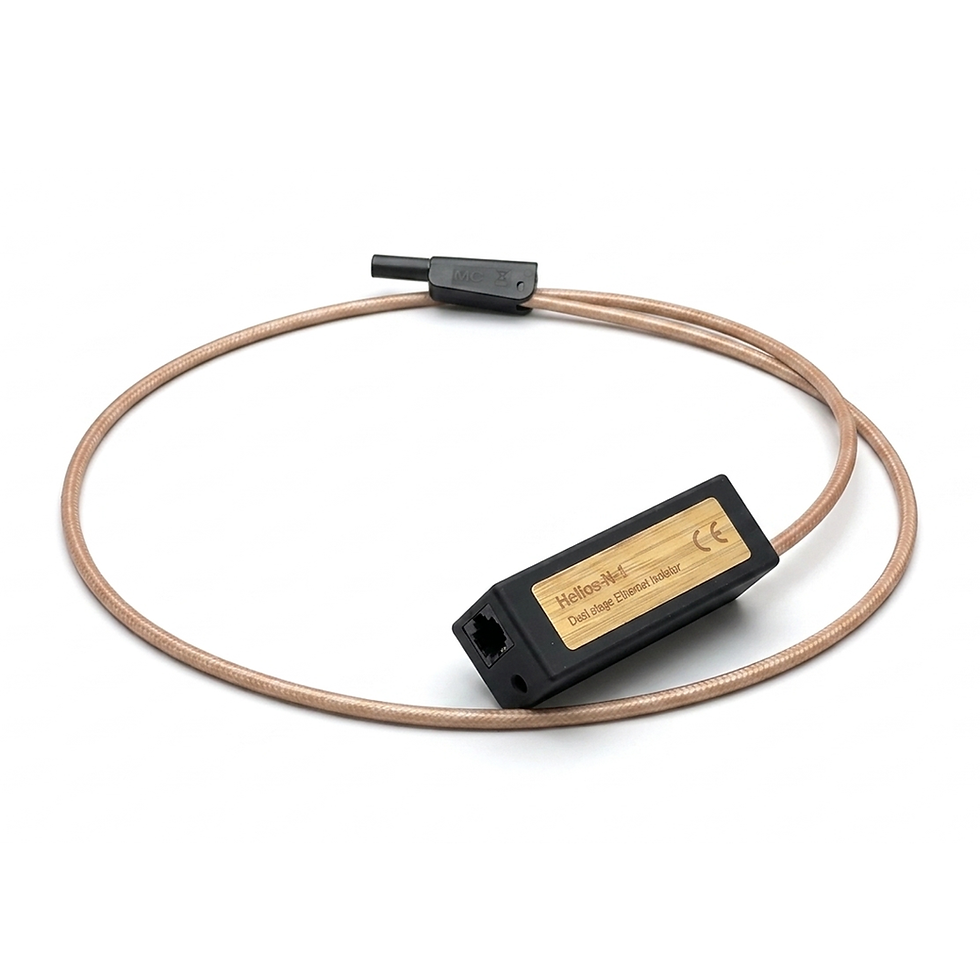

Helios N-1 ethernet isolator
In the modern high-fidelity ecosystem, the network is often the largest source of invisible interference. Standard Ethernet connections are breeding grounds for high-frequency noise and ground loops that mask micro-dynamics and collapse the soundstage.
The Helios Ethernet Isolator is not a simple filter, it is a precision-engineered barrier designed to decouple your sensitive audio streamer from the digital chaos of your home network.
Essential features
Dual-Transformer Isolation
Unlike standard isolators that use a single magnetic coupling, the Helios N-1 employs two high-grade transformers connected in series. This "double barrier" approach provides superior common-mode rejection. By creating a physical break in the galvanic path, we ensure that leakage currents and EMI stay where they belong: outside your audio chain.
Center-Point Grounding
The heart of our design lies in the node between the two transformers. This junction is strategically shunted to ground, effectively draining residual noise before it can reach the second stage of isolation. This architecture ensures that even the most stubborn parasitic capacitance is neutralized.
The Sonic Result
Expect a dramatic expansion in spatial depth, a more natural texture to acoustic instruments, and a sense of "ease" that only comes when digital glare is removed. The Helios N-1 Network Isolator is the final link in your digital chain, ensuring your music arrives bit-perfect—and noise-free.
Connectivity & Integration
Unshielded Precision
We utilize high-quality Cat5 Unshielded RJ45 connectors for the input and output. By avoiding shielded connectors, we prevent the network cable’s shield from acting as an antenna that carries noise into the isolator's chassis. Furthermore, this unshielded design effectively breaks potential ground loops between network components, ensuring that parasitic currents cannot flow through the shield and pollute your audio system's noise floor.
Integrated Coaxial Grounding
The ground connection is handled by a fixed, high-quality coaxial lead, specifically chosen to eliminate contact resistance. The shield of this integrated cable is tied to the chassis, while the core is connected to the transformer junction. At the source side, these paths are merged to provide an ultra-low impedance route for interference, ensuring maximum drainage of unwanted noise.
The Sygnus Connection
For the ultimate performance, the Helios N-1 is designed to be connected to a dedicated "clean earth" or the star-ground of your system. It is specifically optimized for use with the Sygnus X-1 or X-2 grounding blocks.
Specifications
The Science of Separation
Why Galvanic Isolation Matters
In high-fidelity streaming, the network cable is more than just a data path; it is a physical copper bridge that connects your sensitive audio equipment to every noisy device in your home. From routers to refrigerators, electrical interference permeates the network. While the "bits" remain intact, the electrical silence required for true high-end performance is compromised.
The Stealth of Common-Mode Noise
The primary adversary in a digital audio network is Common-Mode Noise. This high-frequency interference resides on all conductors of an Ethernet cable simultaneously. Unlike standard data errors, this noise does not disappear when the data is "buffered." Instead, it hitches a ride on the signal, crossing through the internal components of your streamer and infiltrating the delicate analog stages of your DAC.
This noise is often "correlated" to the network activity, meaning it isn't random—it creates a sonic "haze" that masks the finest details of your music
Parasitic Capacitance: The Invisible Leak
tandard network filters often fail in audiophile applications because of parasitic capacitance. High-frequency noise can "jump" across a single isolation transformer, effectively bypassing the barrier.
The Helios N-1 isolator solves this through Dual-Stage Series Isolation. By placing two high-grade transformers in sequence, we create a formidable obstacle for noise. What manages to pass the first stage is met with a second, even more rigorous barrier, ensuring that the electrical "garbage" from your router is physically blocked.
The Importance of a Defined Earth Path
Isolation alone is only half the battle. To truly eliminate interference, the noise must be given a place to go.
By implementing a Center-Node Earth, the Helios N-1 isolator provides a dedicated exit route for residual noise. Positioned at the junction between the two transformers, this earth point drains interference directly to your system's "clean earth" (such as the Sygnus X-1 or X-2). This prevents the noise from saturating the isolation barrier and keeps your signal path pristine.
Bandwidth Optimization: 100Mbps vs. Gbps
In the world of high-end audio, "faster" is not always "better." Gigabit (Gbps) networks require significantly higher clock frequencies and complex processing, which generate substantial electromagnetic interference (EMI) and heat.
By limiting the Helios N-1 to 10/100 Mbps, we optimize the device for the actual requirements of high-resolution audio. This bandwidth restriction acts as a natural low-pass filter, preventing the ultra-high-frequency "hash" of Gigabit networking from ever entering your audio chain. The result is a calmer, more stable electrical environment for your streamer’s sensitive oscillators.
The Sonic Reward: A Lowered Noise Floor
When you sever the electrical tie between the noisy network and your audio system, the effect is immediate. It is not about changing the data; it is about restoring the environment in which that data is processed.
As the noise floor drops, the "digital edge" disappears. You will experience:
-
Blacker Backgrounds: Silence becomes deeper, allowing the subtlest micro-details to emerge.
-
Holographic Imaging: The soundstage gains height, width, and a tangible sense of air.
-
Timbral Realism: Instruments regain their natural texture and harmonic richness, free from the blurring effects of high-frequency interference.
Frequenly Asked Questions
Why is the Helios N-1 limited to 10/100 Mbps?
In high-end audio, signal purity is paramount. Gigabit (1000 Mbps) networking requires significantly higher clock frequencies and complex digital processing, which generate substantial electromagnetic interference (EMI) and heat. By limiting the speed to 10/100 Mbps -which is more than sufficient for even the highest resolution DSD streams- we eliminate high-frequency "hash" and provide a much calmer electrical environment for your streamer.
Why do you use Unshielded (UTP) connectors?
While shielded cables are common in IT, they often act as an antenna for noise or create unwanted earth paths between devices. By using high-quality unshielded Cat5 RJ45 connectors, we ensure that the isolation transformers are the only link between your network and your audio system, preventing noise from "leaking" across the cable shields.
Do I need a special cable for the Earth connection?
The Helios N-1 comes equipped with an integrated, high-quality coaxial grounding lead, so no additional cable is required. This fixed connection is a deliberate design choice to eliminate contact resistance and ensure the most direct path to ground.
In our optimized configuration, the shield of this lead is connected to the Helios housing and the core to the internal transformer junction. At the source side (your earth block), these are merged to provide an ultra-low impedance path for interference. The cable is finished with a high-quality connector designed for seamless integration with our Sygnus grounding blocks.
Can I use the Helios N-1 without a dedicated earth block?
While the Helios N-1 provides significant isolation on its own, its full potential is realized when connected to a "clean earth." We specifically designed the Helios to be paired with the Sygnus X-1 or X-2 star-earth systems to effectively drain residual noise away from the signal path.
Where should I place the Helios N-1 in my network chain?
For maximum impact, the Helios should be placed as the final link in your network chain, directly before your streamer. This ensures that any noise picked up by long cable runs or intermediate switches is stripped away just before the data enters your sensitive audio equipment.
Does the Helios N-1 require an external power supply?
No. The Helios N-1 is a purely passive device. It utilizes precision-wound transformers to transfer the data signal while maintaining complete galvanic isolation. This means it introduces no power supply noise of its own into your system.
